外形尺寸: |
9800,10000,10500,11000,12000×2550×3900,3995 (mm) |
货箱尺寸: |
6800,7000,7200,7300,7400,7600,7700,8100,8600,9000,9500×2500,2520×2450,2520,2600 (mm) |
总质量: |
31000 |
载质量利用系数: |
|
整备质量: |
12010,12380,13000 |
额定载质量: |
|
挂车质量: |
|
半挂鞍座: |
|
驾驶室: |
|
前排乘客: |
2,3 |
接近角/离去角: |
30/16,30/24,30/21,30/18,30/15,30/14 |
前悬/后悬: |
1475/1140,1475/2590,1515/1100,1515/2550,1475/1040,1515/1000,1540/1075,1540/2525,1540/975,1475/2290,1515/2250,1540/2225,1475/2440,1515/2400,1540/2375 |
轴荷: |
6500/6500/18000(二轴组) |
轴距: |
1850+2700+1350,1850+3000+1350,1850+3200+1350,1850+3300+1350,1850+3400+1350,1850+3700+1350,1850+4350+1350,1995+2855+1350,2050+2300+1350,2050+2500+1350,2050+2800+1350,2050+3000+1350,2050+3100+1350,2050+3200+1350,2050+3500+1350,2050+4150+1350,2050+4600+1350,1700+5800+1350,1850+2300+1350,1850+5750+1350,1850+4000+1350 |
轴数: |
4 |
最高车速: |
89 |
油耗: |
36.6,36.6,36.5,36.5,36.9,36.2,36.5,32.3,35.8,36.5,36.5,37.0,37.3,29.5 |
弹簧片数: |
3/3/4,8/8/10,9/9/13,10/10/13,3/3/3,3/3/10,4/4/5 |
轮胎数: |
12 |
轮胎规格: |
10.00R20 18PR,11.00R20 18PR,295/80R22.5 18PR,11R22.5 18PR,12R22.5 18PR,12.00R20 18PR |
前轮距: |
1880/1880,1910/1910,1960/1960,2010/2010,2040/2040,1840/1840,1760/1760,1800/1800,2060/2060 |
后轮距: |
1750/1750,1860/1860,1880/1880,1600/1600,1630/1630 |
制动前: |
|
制动后: |
|
制操前: |
|
制操后: |
|
转向形式: |
|
启动方式: |
|
Vin车辆识别代码: |
|

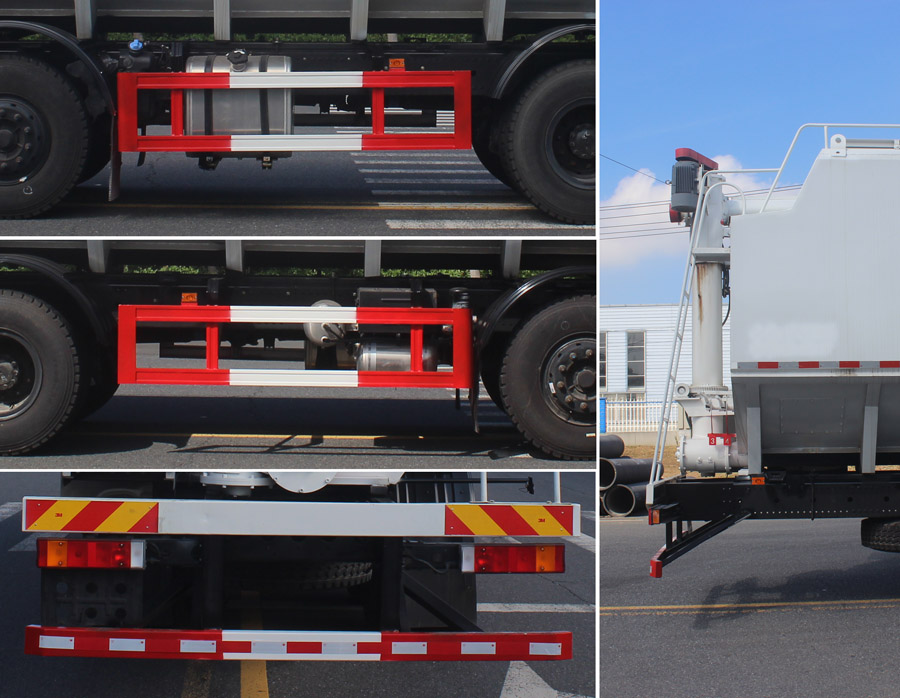

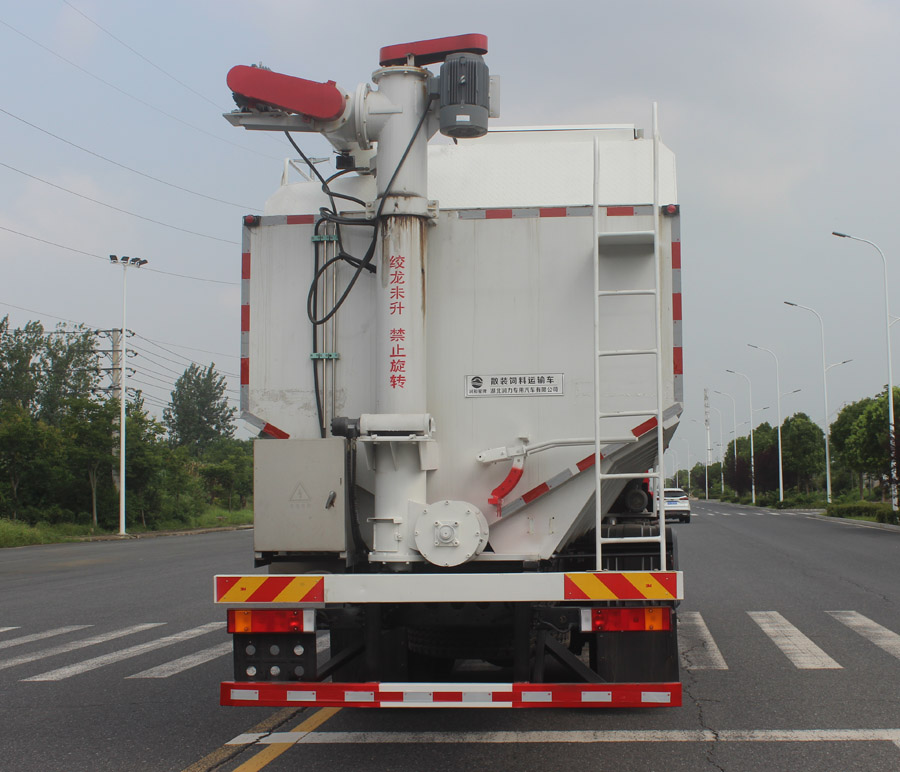

该车主要用于饲料的运输,主要专用装置是饲料仓和上下料的绞龙机构,卸料方式链条传动卸料.侧、后防护材料为Q235B,侧、后防护与车架螺栓加焊接连接,后部防护装置断面尺寸(宽×高)50×120(mm),后部防护离地高度:490mm.该车型选装ETC车载装置.安装带有卫星定位功能的行驶记录仪.ABS生产厂家:东科克诺尔商用车制动系统(十堰)有限公司,浙江万安科技股份有限公司,型号:3631010-C2000,VIE ABS-Ⅱ.整车长/轴距/前悬/后悬(mm)对应关系为: 9800/2050+3000+1350/1515/1885,10000/2050+3000+1350/1515/2085,10500/2050+3000+1350/1515/2585,10500/2050+3200+1350/1515/2385, 11000/1850+3700+1350/1515/2585,12000/2050+4150+1350/1515/2935.发动机YCK08350-60,YCK08300-60,WP7.300E61,WP8.350E61,DDi75E350-60,D6.7NS6B320,WP6H270E61,YCS06270-60,DDi11E430-60,WP7H270E62,WP8.350E62,DDi90E400-60,YCS06290-61,YCS06300-61油耗值(L/100km)分别对应为:36.6,36.6,36.5,36.5,36.9,36.2,36.5,32.3,35.8,36.5,36.5,37.0,37.3,29.5 |
